在Windows环境下使用SOEM进行EtherCAT开发——协议篇
Dawn Hill 结丹
  2019-09-26 09:19:38   2019-11-14 16:55:05  24.5k 字  147 分钟

EtherCAT系统组成

EtherCAT是一种实时工业以太网技术，它使用主从介质访问控制（media access control, MAC），主站发送以太网帧给主从站，从站从数据帧中抽取数据或将数据插入数据帧。主站使用标准的以太网接口卡（其实就是网卡吧），从站使用专门的需要花钱买的从站控制器ESC（EtherCAT Slave Controller）。

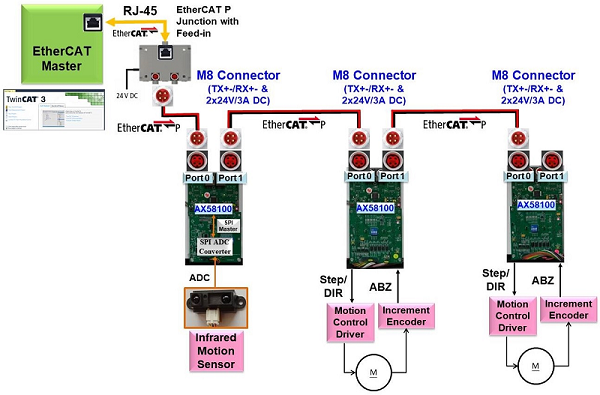

EtherCAT主站与从站连接的网络结构通常是这样的（我要用的是这样的，当然还有其他的结构）。

每一个从站都可以在报文中读取数据和插入数据，这种从站可以用来控制电机和传感器。

EtherCAT协议

分析协议，要知道EtherCAT命令是在以太网报文的数据区域传输的，可以通过特殊的以太类型编码，也可以通过UDP/IP编码。第一种变体仅限于以太网子网，而第二种变体专为时间要求较低的应用程序设计，支持正常的IP路由。而我们要的显然是时间要求高一点的特殊以太类型编码。

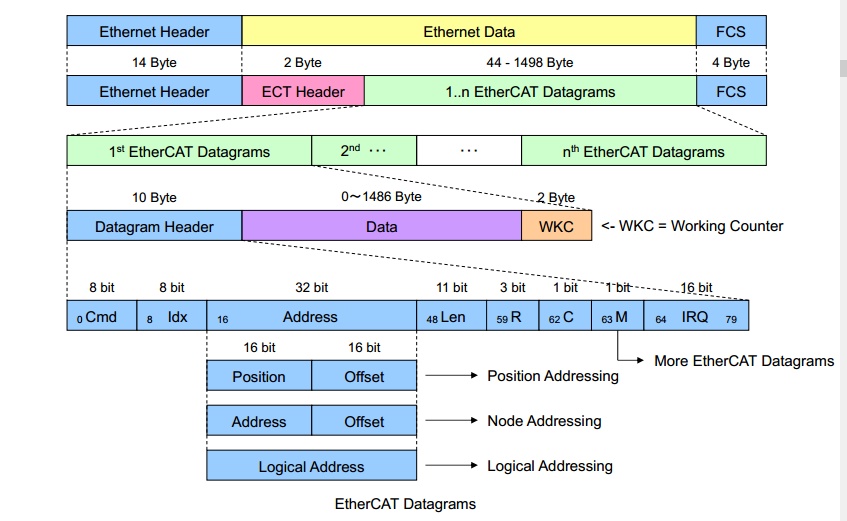

一个EtherCAT报文由数个子报文组成，总长度在44~1498字节之间。每个子报文分为10字节的报文头、0~1486字节的数据和2字节的工作计数器三个部分。这个工作计数器根据EtherCAT命令所寻址并交换了相关数据的所有EtherCAT设备递增。EtherCAT的报文结构参考下图，

  • Cmd：表示EtherCAT指令类型，即应当如何处理后面的数据。
  • Idx：表示帧的索引号，用来帮助主站对报文进行识别。
  • Address：表示从站地址，有三种寻址模式，分别为位置寻址、节点寻址、逻辑寻址。
  • Len：表示报文数据的长度。
  • R：表示保留位。
  • C：为帧循环标志。
  • M：表示后续报文标志，0表示当前为最后一个报文，1表示EtherCAT随后将提供更多报文。
  • IRQ：表示中断请求寄存器。
  • Data：表示数据区
  • WKC：表示工作计数器。

报文数据在从站中的流通过程为：从站从报文中提取或插入相关的用户数据，然后将该报文传输到下一个EtherCAT从站，最后一个EtherCAT从站发回经过完全处理的报文，并由第一个从站作为响应单元将其发送给控制单元。

报文处理是在硬件内部完成的，因此与任何可能连接的微处理器的响应时间无关。每个设备都有64 kB的可寻址内存，可以连续或同时读写。

SI从站信息接口

EEPROM(Electrically Erasable Programmable Read-Only Memory, 也叫 Slave Information Interface, SII)，包含ESC的硬件配置信息，该信息在通电期间加载到ESC的寄存器中。

FMMU现场总线内存管理单元

Fieldbus Memory Management Units (FMMU)，它通过内部地址映射将逻辑地址转换为物理地址。因此，FMMUs允许对跨越多个从设备的数据段使用逻辑寻址:一个数据报在几个任意分布的ESCs中寻址数据。每个FMMU通道将一个连续逻辑地址空间映射到从服务器的一个连续物理地址空间。FMMU支持的访问类型可配置为可读、可写或可读/可写。

FMMU的设置

  • 主站读取硬件配置，包括每个从站的输入和输出数据长度。
  • 主站使用SDO组织过程数据的映射。
  • 主站为每个从站分发关于逻辑过程映像中过程数据提供位置的信息(起始地址等)。
  • 启动过程数据通信。

SyncManager同步管理器

SyncManager是为了确保访问ESC中数据的一致性。SyncManager是一种保护ESC中DPRAM里的数据不被同时访问的机制。如果从机使用FMMUs，对应数据块的同步管理器位于DPRAM和FMMU之间。EtherCAT同步管理器可以在两种模式下运行:

  • Mailbox Mode邮箱模式：
    邮箱模式用于实现数据交换的握手机制。EtherCAT主站和应用程序只有在其他程序访问结束时才有权限对缓存进行访问。当发送方写入缓冲区时，缓冲区被锁定以便写入，直到接收方将其读出来。邮箱模式通常用于应用程序层协议和交换非循环数据(SDO)(例如，参数设置)

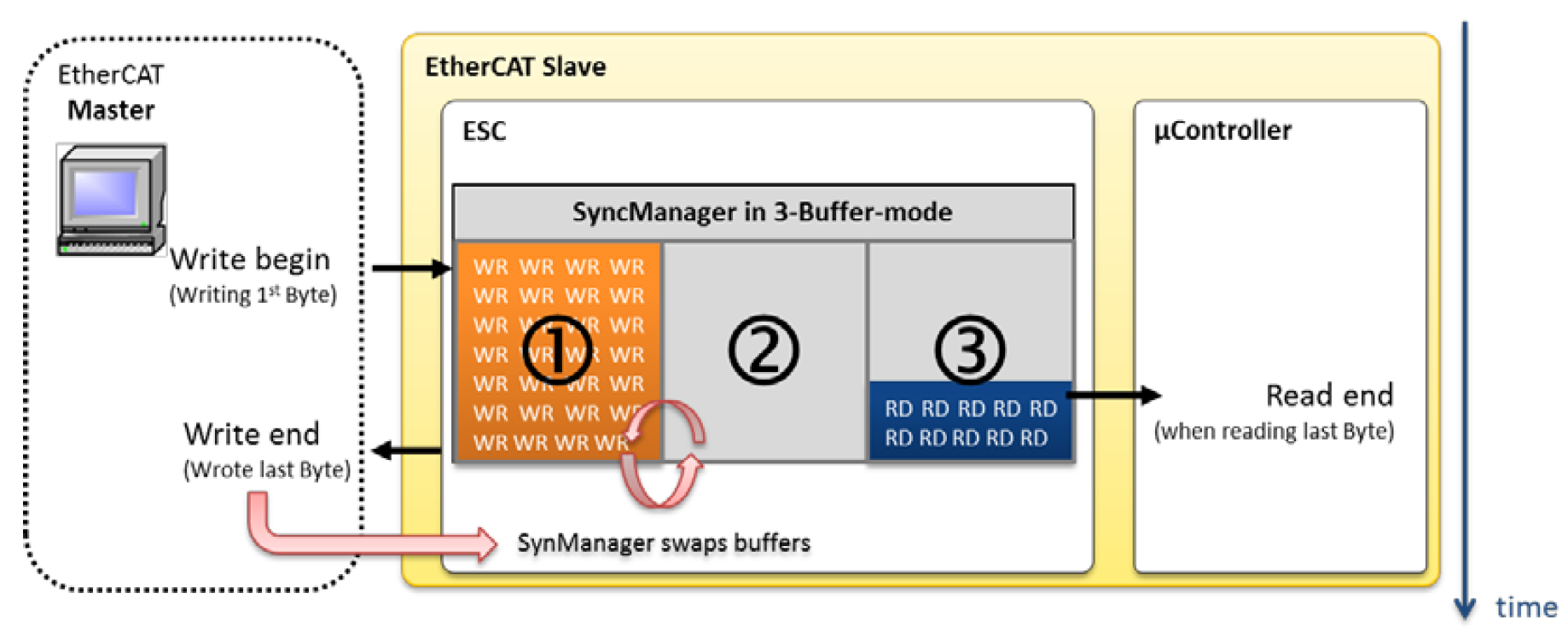

  • Buffered Mode缓存模式：
    缓冲模式通常用于循环数据交换,即过程数据(PDO)。由于缓冲模式允许双方随时访问通信缓冲区，发送方始终可以更新缓冲区的内容。如果缓冲区的写入速度快于接收器的读取速度，则会丢弃旧数据。因此，接收方总是获得由发送方编写的最新一致的缓冲区内容。
image image

EtherCAT状态机（EtherCAT State Machine, ESM）

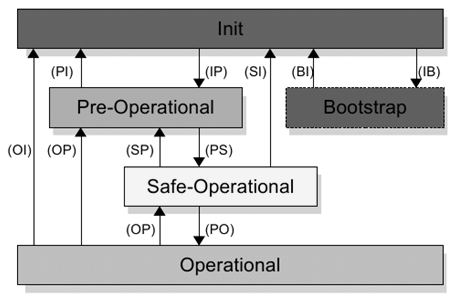

每个EtherCAT从设备都实现了EtherCAT状态机如下图，该状态机管理从设备的功能，因为在每个时刻，实际状态都定义了可用的函数范围。

EtherCAT从站定义了四个强制状态和一个可选状态:Init、Pre-Operating、Safe-Operating、Operational、Bootstrap(可选)。对于每个状态的更改，EtherCAT主设备必须向EtherCAT从设备发送一系列特定于从设备的命令。


每个EtherCAT状态的可用函数

  • Init初始化状态:
    • 主站：初始化状态。
    • 从站：开机后的初始化状态。
    • 通信：没有邮箱通信和数据交换。
  • Pre-Operational预运行状态：
    • 主站：同步管理器通道的初始化，以便在从初始化到预操作期间进行邮箱通信。
    • 从站：在从初始化转换到预操作期间验证同步管理器配置。
    • 通信：有邮箱通信，但没有进程数据交换。
  • Safe-Operational安全运行状态：
    • 主站：进程数据交换同步管理器通道的初始化、FMMU通道的初始化、PDO映射/分配(如果从服务器支持可配置映射)、DC配置和设备特定参数的初始化，这些参数在从预运行到安全运行的转换期间与缺省值不同。
    • 从站：在从预操作到安全操作的转换期间验证所有配置的值。
    • 通信：邮箱通信和处理数据交换，但从站在循环更新输入数据的同时保持其输出处于安全状态。
  • Operational运行状态:
    • 主站：全面运行。
    • 从站：全面运行。
    • 通信：邮箱通信和进程数据交换工作正常。
  • Bootstrap引导状态:
    • 主站：可选状态，只能从Init中输入。
    • 从站：可选状态，只能从Init中为固件更新输入该状态。
    • 通信：有限的邮箱通信(只支持FoE协议)，没有进程数据交换。

Object Dictionary对象字典

CANopen对象字典(OD)是对象的有序分组;每个对象都使用16位索引来寻址。为了允许访问数据结构的各个元素，还定义了一个8位的子索引。对于网络中的每个从属节点，都存在一个OD。OD包含描述设备及其网络行为的所有参数。

  • 对象字典将设备的描述标准化。
  • 使用邮箱访问COE对象字典及其对象；
  • 使用对象字典映射过程数据，周期性传输指令数据和状态数据。
  • 主机与从机同一份对象字典

通过邮箱访问对象字典建立一个链表结构，再通过过程数据方式来填充该链表中对应的对象内容，最终实现通过PC端(Master)来控制从设备(Slave)的执行变量的操作。

Distributed clock分布式时钟

在EtherCAT中，分布式时钟使所有现场总线设备具有相同的时间。一个特定的设备包含参考时钟，它用于同步其他设备的时钟。

为此，控制器按一定的间隔发送一份特殊报文(根据需要，以避免从时钟偏离指定的界限)，其中包含参考时钟的总线设备进入其当前时间。带有从时钟的现场总线设备然后从同一报文中读出时间。

该机制的最终目标是使以太网帧从应用读数据读写从站数据的时间独立，并且可以在ESC的一部分从站中选择性地实现。

据说分布式时钟是用硬件实现的，很稳。

试着用起来啊

通过IOmap访问数据

一个声音告诉我，下面这些输出信息看懂了就能用了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
slaveinfo.exe \Device\NPF_{727D913F-23BC-421F-A071-7F597A7026B4} -map
SOEM (Simple Open EtherCAT Master)
Slaveinfo
Starting slaveinfo
ec_init on \Device\NPF_{727D913F-23BC-421F-A071-7F597A7026B4} succeeded.
1 slaves found and configured.
Calculated workcounter 3

Slave:1
 Name:? M:0000009a I:00030924
 Output size: 80bits
 Input size: 80bits
 State: 4
 Delay: 0[ns]
 Has DC: 1
 DCParentport:0
 Activeports:1.0.0.0
 Configured address: 1001
 Man: 0000009a ID: 00030924 Rev: 00010420
 SM0 A:1800 L: 140 F:00010026 Type:1
 SM1 A:1900 L: 140 F:00010022 Type:2
 SM2 A:1100 L:  10 F:00010064 Type:3
 SM3 A:1180 L:  10 F:00010020 Type:4
 FMMU0 Ls:00000000 Ll:  10 Lsb:0 Leb:7 Ps:1100 Psb:0 Ty:02 Act:01
 FMMU1 Ls:0000000a Ll:  10 Lsb:0 Leb:7 Ps:1180 Psb:0 Ty:01 Act:01
 FMMUfunc 0:1 1:2 2:0 3:0
 MBX length wr: 140 rd: 140 MBX protocols : 0e
 CoE details: 3f FoE details: 01 EoE details: 01 SoE details: 00
 Ebus current: 0[mA]
 only LRD/LWR:0
PDO mapping according to CoE :
  SM2 outputs
     addr b   index: sub bitl data_type    name
  [0x0000.0] 0x607A:0x00 0x20 INTEGER32    Target position
  [0x0004.0] 0x60FE:0x01 0x20 UNSIGNED32   Physical outputs
  [0x0008.0] 0x6040:0x00 0x10 UNSIGNED16   Controlword
  SM3 inputs
     addr b   index: sub bitl data_type    name
  [0x000A.0] 0x6064:0x00 0x20 INTEGER32    Position actual value
  [0x000E.0] 0x60FD:0x00 0x20 UNSIGNED32   Digital inputs
  [0x0012.0] 0x6041:0x00 0x10 UNSIGNED16   Statusword
End slaveinfo, close socket
End program

还有另一个
